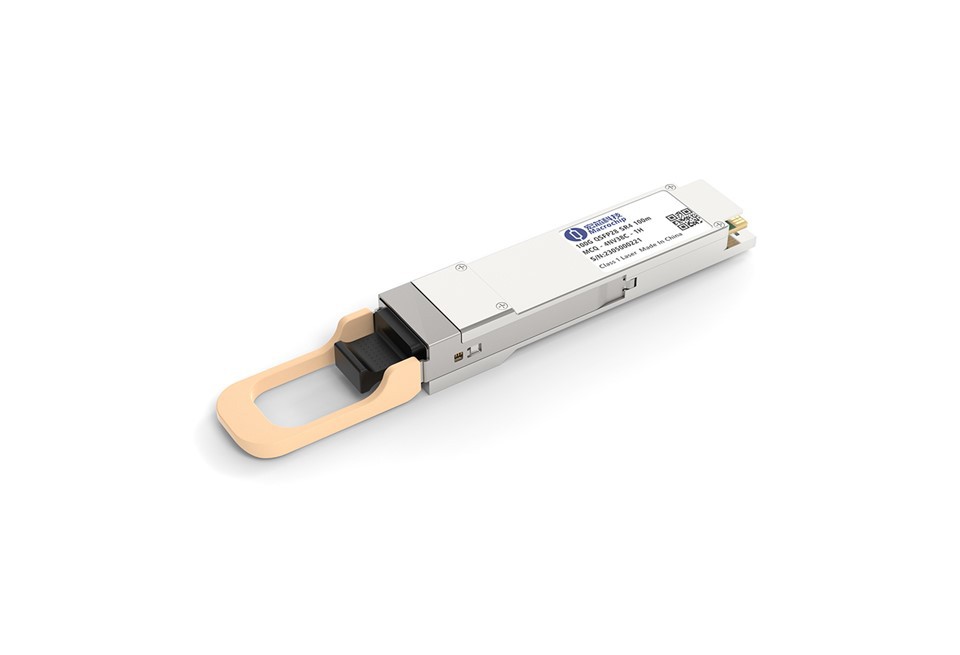

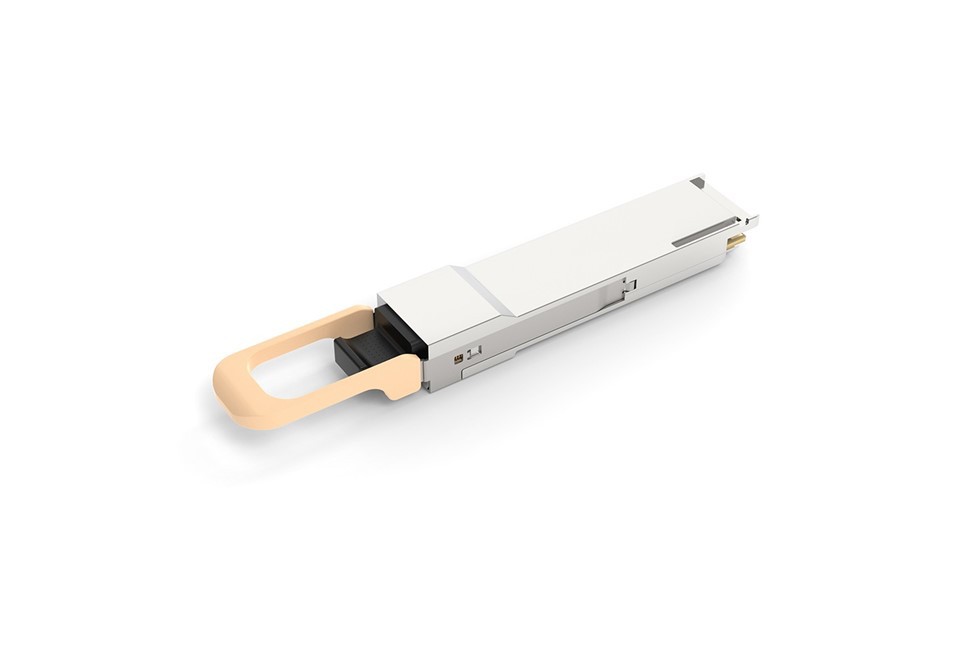

QSFP 100
Form Factor: QSFP28
Transmitter: VCSEL
Lub wavelength: 850nm
Hluav taws xob Modulation: 4x25.78Gb/s NRZ
Xa kev nug
Product Details ofQSFP 100
Txheej txheem cej luam
Tag Nrho -Scenario Solutions rau ntau haiv neeg Network Xav tau
Peb muab ib qho kev qhia 100G QSFP28 cov khoom lag luam:
· Multimode Luv-Reach: SR4 (70-100m)
· Ib -Mod Mid/Long-Reach: PSM4 (500m), CWDM4 (2km), LR4 (10km)
· Ntxiv & Lite Versions: ER4 (40km), ER4 Lite (20-30km)
· Ib -Lambda Efficiency: DR1 (500m), FR1 (2km), LR1 (10km)
Txhua QSFP 100 series ua raws li ISO / CE / RoHS cov ntawv pov thawj, sib xws nrog cov hom loj, thiab txhawb kev hloov kho.
100G QSFP28 SR4
|
Tshooj Naj Npawb |
MCQ-4NV38C-1H |
Cov ntaub ntawv tus nqi |
100 Gbps |
|
Form Factor |
QSFP28 |
Kev siv hluav taws xob |
3.3V |
|
Transmitter |
VCSEL |
Tus txais |
PIN |
|
Lub wavelength |
850nm ua |
Kev siv fais fab |
2.5W |
|
Hluav taws xob Modulation |
4x25.78Gb/s NRZ |
Optical Modulation |
4x25.78Gb/s NRZ |
|
Txuas |
MPO-12 |
Txuas Length |
70m OM3 / 100m OM4 |
|
Cov txheej txheem |
IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 |
Case kub |
0 ~ 70 degree |
100G QSFP28 PSM4
|
Tshooj Naj Npawb |
MCQ-4NS3CC-5H |
Cov ntaub ntawv tus nqi |
100 Gbps |
|
Form Factor |
QSFP28 |
Kev siv hluav taws xob |
3.3V |
|
Transmitter |
DFB |
Tus txais |
PIN |
|
Lub wavelength |
1310nm ua |
Kev siv fais fab |
3.5W |
|
Hluav taws xob Modulation |
4x25.78Gb/s NRZ |
Optical Modulation |
4x25.78Gb/s NRZ |
|
Txuas |
MPO-12 |
Txuas Length |
500m |
|
Cov txheej txheem |
IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 |
Case kub |
0 ~ 70 degree |
100G QSFP28 CWDM4
|
Tshooj Naj Npawb |
MCQ-4NSCCC-2K |
Cov ntaub ntawv tus nqi |
100 Gbps |
|
Form Factor |
QSFP28 |
Kev siv hluav taws xob |
3.3V |
|
Transmitter |
DFB |
Tus txais |
PIN |
|
Lub wavelength |
1271/1291/1311/1331nm |
Kev siv fais fab |
3.5W |
|
Hluav taws xob Modulation |
4x25.78Gb/s NRZ |
Optical Modulation |
4x25.78Gb/s NRZ |
|
Txuas |
LC |
Txuas Length |
2km ua |
|
Cov txheej txheem |
CWDM MSA, QSFP56 MSA, SFF-8636 |
Case kub |
0 ~ 70 degree |
100G QSFP28 LR4
|
Tshooj Naj Npawb |
MCQ-4 NSCLC-10 |
Cov ntaub ntawv tus nqi |
100 Gbps |
|
Form Factor |
QSFP28 |
Kev siv hluav taws xob |
3.3V |
|
Transmitter |
DFB |
Tus txais |
PIN |
|
Lub wavelength |
LWDM |
Kev siv fais fab |
3.5W |
|
Hluav taws xob Modulation |
4x25.78Gb/s NRZ |
Optical Modulation |
4x25.78Gb/s NRZ |
|
Txuas |
LC |
Txuas Length |
10km ua |
|
Cov txheej txheem |
IEEE 802.3ba, QSFP28 MSA, SFF-8665, SFF-8636 |
Case kub |
0 ~ 70 degree |
100G QSFP28 ER4/ER4 Lite
|
Tshooj Naj Npawb |
MCQ-4 NSCLC-40 |
Cov ntaub ntawv tus nqi |
100 Gbps |
|
Form Factor |
QSFP28 |
Kev siv hluav taws xob |
3.3V |
|
Transmitter |
EML |
Tus txais |
APD |
|
Lub wavelength |
LWDM |
Kev siv fais fab |
5W |
|
Hluav taws xob Modulation |
4x25.78Gb/s NRZ |
Optical Modulation |
4x25.78Gb/s NRZ |
|
Txuas |
LC |
Txuas Length |
30/40km 3 |
|
Cov txheej txheem |
IEEE 802.3ba, QSFP28 MSA, SFF-8665, SFF-8636 |
Case kub |
0 ~ 70 degree |
100G QSFP28 DR1
|
Tshooj Naj Npawb |
Qauv TSIS MUAJ: MCQ-6PS1CC-5H |
Cov ntaub ntawv tus nqi |
100 Gbps |
|
Form Factor |
QSFP28 |
Kev siv hluav taws xob |
3.3V |
|
Transmitter |
SIP |
Tus txais |
PIN |
|
Lub wavelength |
1310 |
Kev siv fais fab |
4W |
|
Hluav taws xob Modulation |
4x25.78Gb/s NRZ |
Optical Modulation |
1x106.25Gb/s PAM4 |
|
onnector |
LC |
Txuas Length |
500m |
|
Cov txheej txheem |
IEEE 802.3cd, QSFP28 MSA, SFF-8665, SFF-8636 |
Case kub |
0 ~ 70 degree |
100G QSFP28 FR1
|
Tshooj Naj Npawb |
Tom ntej: MCQ-6PS1CC-2K |
Cov ntaub ntawv tus nqi |
100 Gbps |
|
Form Factor |
QSFP28 |
Kev siv hluav taws xob |
3.3V |
|
Transmitter |
SIP |
Tus txais |
PIN |
|
Lub wavelength |
1310 |
Kev siv fais fab |
4W |
|
Hluav taws xob Modulation |
4x25.78Gb/s NRZ |
Optical Modulation |
1x106.25Gb/s PAM4 |
|
Onnector |
LC |
Txuas Length |
2km ua |
|
Cov txheej txheem |
IEEE 802.3cu, QSFP28 MSA, SFF-8665, SFF-8636 |
Case kub |
0 ~ 70 degree |
100G QSFP28 LR1
|
Tshooj Naj Npawb |
MCQ-6PS1LC-10 |
Cov ntaub ntawv tus nqi |
100 Gbps |
|
Form Factor |
QSFP28 |
Kev siv hluav taws xob |
3.3V |
|
Transmitter |
EML |
Tus txais |
PIN |
|
Lub wavelength |
1310 |
Kev siv fais fab |
4.5W |
|
Hluav taws xob Modulation |
4x25.78Gb/s NRZ |
Optical Modulation |
1x106.25Gb/s PAM4 |
|
onnector |
LC |
Txuas Length |
10km ua |
|
Cov txheej txheem |
IEEE 802.3cu, QSFP28 MSA, SFF-8665, SFF-8636 |
Case kub |
0 ~ 70 degree |
Txog Peb
Macrochip tau tsim nyob rau xyoo 2020, nrog rau sab saum toj - pab pawg kws tshaj lij hauv Suav teb. Peb tau koom tes nrog cov neeg siv khoom txawv teb chaws hauv Tebchaws Europe, Amelikas, Southeast Asia, thiab lwm thaj chaw, ua tiav kev txiav txim muaj nqis tshaj 60 lab US dollars.
